PIAP FENIX®

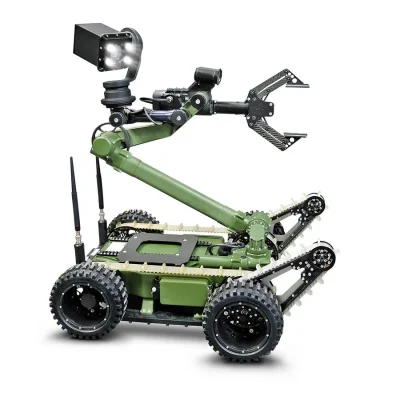

PIAP FENIX® is a light, backpack-deployed reconnaissance robot. It has been created to conduct reconnaissance in the immediate vicinity of military operations, including places inaccessible to humans.

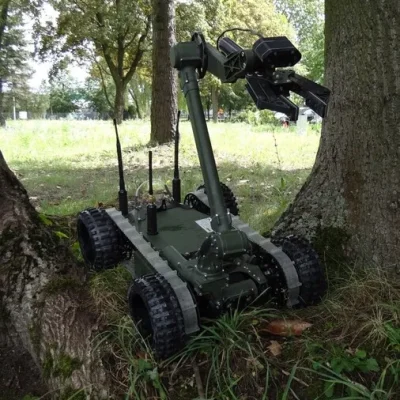

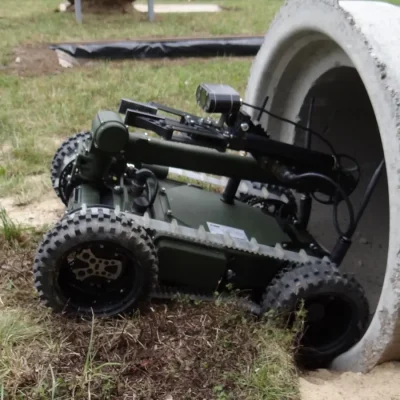

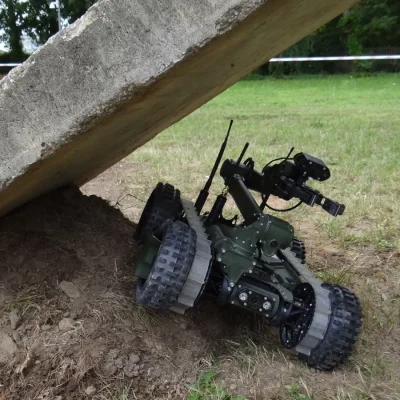

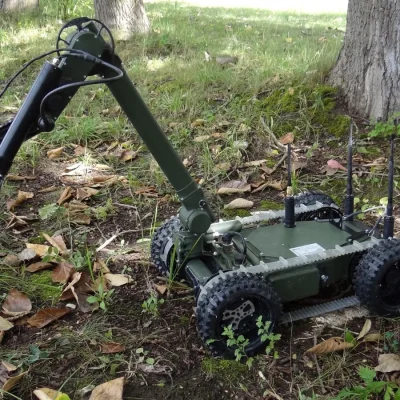

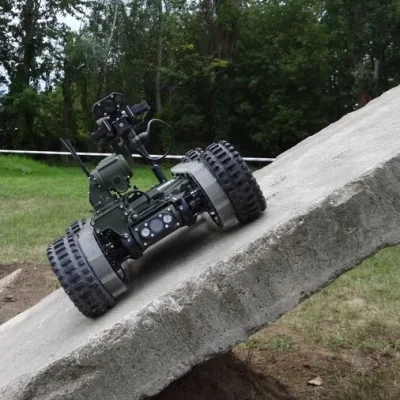

Excellent field properties of PIAP FENIX® robot (track-wheels chassis with moveable front flippers) ensure easy movement on hardened road surface, dirt roads, pathless tracts and in urban areas.
PIAP FENIX Leaflet 1,2 MB
Technical data
( all weights and dimensions are approximate and details are subject to change without notification )
| Mobile base | rigid and lightweight carbon composite construction |
| Dimensions of the robot without antennas and front flippers | 60x50x19 cm (LxWxH) |
| Weight of the robot without manipulator | 15 kg |
| Weight of the robot with manipulator | 20 kg |
| Range in open field | 800 m |
| Operational work time (depending on the type of mission, possibility of quick battery replacement) | around 6 h |
| Maximum speed | 10 km/h |
| Battery with an option of replacement without tools | 2 pcs. |
| Chassis | track-wheels, with movable front flippers |
| Maximum horizontal range of the manipulator (from the end of the mobile base) | 100 cm |
| Maximum lift capacity of the manipulator | 5 kg |
| Clamp opening range | 16 cm |
| Number of controlled degrees of freedom | 3 + clamp of gripper |
| Number of degrees of freedom operated manually | 1 |
Accessories
Mounted on Picatinny rails or on mounting holes of the mobile base or manipulator.
- Advanced manipulator with 5 degrees of freedom
- Camera heads equipped with night vision and thermal imaging
- Directional characteristic microphone
- compatible with MO-2M sensor
- Makes easier carrying the robot with accessories
- Environmental swab
- Ground sampler
- Forensic samplers set
- SPME adsorber
- R – Sensor (integrated EKO-C)
- Knocking windows, knocking holes in surfaces and lock fittings or other small parts(the principle of „pile driver”)
- Piercing objects, e.g. tires
- Breaking hinges
- Cutting metal rods, cables, wires, chains, tubes
- Cutting off elements
- Initiating non-electric detonators such as STS, NDS, NONELBasic operating tips:
- Cutter for cable, wire and rod;
- Punches for windows and other components;
- Triggers to initiate explosion with non-electric detonation systems
- Cutters (knives and blades)
- Possibility of designing tips for specific needs of the user
for detection of errors and faults in the robot- for changing settings and configuration of the robot
- accessories and SVGA connector
We declare willingness to modify the robot and optional equipment according to the user’s needs.
