PIAP PATROL®
C-IED and CBRN robot

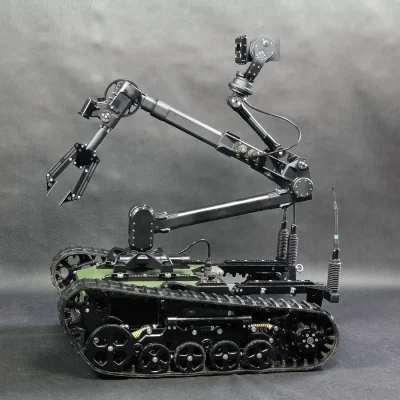

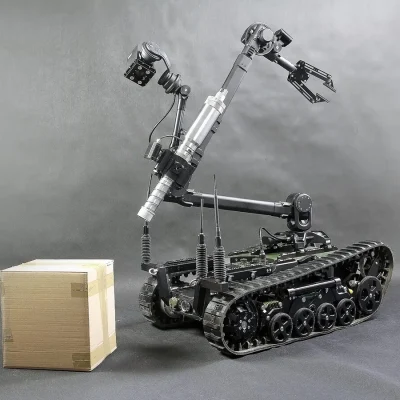

PIAP PATROL® is a medium EOD tracked robot used for detection and neutralization, which can support operators in the most dangerous tasks.
The robot design ensures the use of several accessories at the same time. Lightweight robot control panel is integrated with mobile x-ray systems and CBRN sensors. Robot’s dimensions and applied drive system allow to carry out activities both inside buildings and in difficult terrain and compactand modular design allows it to be transported even in a passenger car.
Manipulator with 6 degrees of freedom and gripping function enables to lift and disposal loads up to 22 kg with maximum reach of 2 m.
PIAP PATROL® leaflet
TECHNICAL DATA
( all weights and dimensions are approximate and details are subject to change without notification )
| Dimensions in stowed position: | 98 x 57 x 65 cm (length x width x height) |
| Weight (without accessories) of the robot with manipulator and battery | 95 kg |
| Maximum Speed | 8 km/h. |
| Operating time (mission-dependent, possibility of quick battery replacement) | 5 h |
| Maximum radio transmission range in open area | 800 m |
| Maximum lift capacity | fully extended at the front: 7 kg close-in at the front: 22 kg |
| Maximum reach, horizontal – from the vertical rotation axis | 1940 mm |
| Maximum reach, vertical – from the lower edge of the tracks | 2170 mm |
ACCESSORIES
- Equipment:
- camera with IR illuminators for day and night vision – weight [kg]: 2.1,
- lasers (2 pcs.),
- safety switch,
- weight:[kg]: 2,1
- dimensions [cm]: 12-20.5(W) x 14(H) x 11(L)
- enables mounting a Benelli M4 Super 90 rifle
- equipped with laser sight, accessories connector and safety switch
- materials: steel + aluminium
- weight [ kg]: 3
- dimensions [cm]: 68(L) x 24(H) x 10.5(W)
- PIAP RMI robot works with an X-ray device with dispensable screens
- adapter for X-ray device is composed of:
- adapter to mount the device in the gripper
- telescopic boom
- screen holder
- radiation generator holder
- enables steering the robot without radio communication
- essential for connecting the repeater
- the passive fibre optic cable winder set consists of:
- body
- crank
- short fibre optic cable
- long fibre optic cable (on the reel)
- RIS rail holders
- weight [kg]: 3.1
- dimensions [cm]: 21(L) x 25(W) x 28(H)
- technical specification of the fibre optic:
- minimum bending radius: 25mm
- maximum tensile force: 300N (30.5 kg)
- Available length: [m]: 150, 300
- enables steering the robot without radio communication
- cable length: up to 300m
- weight [kg]: 6.15
- dimensions [cm]: 28(L) x 23(W) x 24(H)
- for remote detonation of the explosives
- enables remote location of antennae
- PIAP RMI works with a negotiation kit which consists of:
two microphones and one loudspeaker installed on the mobile base and a microphone connected to the control panel - Negotiation kit requires fibre optic remote control
- additional battery for the control panel
- additional battery for the mobile base
- Enables continuous work of the control panel, while connecting to power source
- the device works automatically and requires no other action from the operator
- the breaker consists of a the bolt terminated with sintered carbide and an inner hammer system. The housing allows the device to be held with gripper jaws.
- metal transport basket for safe transport of heavy loads
- Environmental swab
- Ground sampler
- Forensic samplers set
- SPME adsorber
- R – Sensor (integrated EKO-C)
- Knocking windows, knocking holes in surfaces and lock fittings or other small parts
(the principle of „pile driver”) - Piercing objects, e.g. tires
- Breaking hinges
- Cutting metal rods, cables, wires, chains, tubes
- Cutting off elements
- Initiating non-electric detonators such as STS, NDS, NONEL
- Basic operating tips:
- Cutter for cable, wire and rod;
- Punches for windows and other components;
- Triggers to initiate explosion with non-electric detonation systems
- Cutters (knives and blades)- Possibility of designing tips for specific needs of the user
- for detection of errors and faults in the robot
- for changing settings and configuration of the robot
- accessories and SVGA connector
We declare willingness to modify the robot and optional equipment according to the user’s needs.
