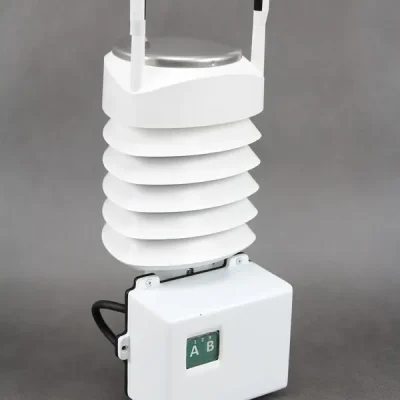

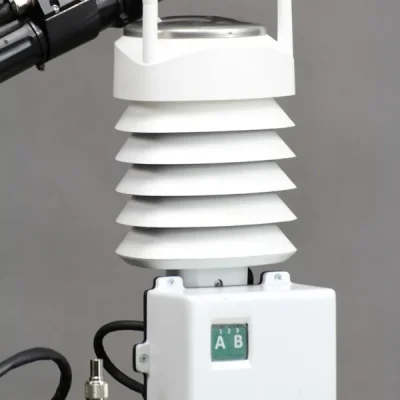

WEATHER STATION

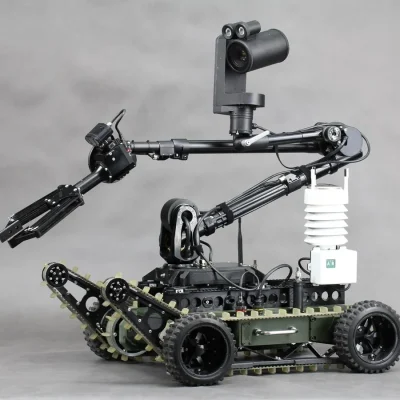

The device mounted on a mobile robot allows to perform meteorological measurements in the robot’s vicinity in terms of wind speed and direction, precipitation, atmospheric pressure, temperature and relative humidity. Information from the weather sensor is transmitted in real time to the operator’s console.
The device can be operated remotely from the operator’s console or manually via touch user interface. Information provided by weather station is of a particular importance in the incidents related to CBRN contamination, as it allows to estimate the direction and extent of contamination spread.
Accessories leaflets
Technical data
( all weights and dimensions are approximate and details are subject to change without notification )
| Dimensions | 310 x 140 x 130 [mm] |
| Device mass | 1,3 [kg] |
| Set mass | 4,1 [kg] |
| Integrated detector | Vaisala Weather Transmitter WXT520 |
| Operating parameters |
|
| Set contains | device, transport case with in-built charger, power cable, microUSB cable |
| Power supply | built-in battery |
| Charging method | wireless via transport case, wired via microUSB 5VDC |
| Method of transport on the robot | mounted to NATO accessory rail on the mobile base |
| Additional information | device is decontamination-ready; the housing includes LED interface indicating device statuses |
We declare willingness to modify the vehicle and optional equipment according to the user’s needs.
